Examples

Eight runnable scripts, in the order they build on each other. 01–05 run on CPU against the synthetic world in xwm.data, so there is no dataset to download. 06–08 need the newton extra and download the Franka asset on first run.

python examples/01_image_ijepa.py

example	shows
01_image_ijepa.py	I-JEPA pretraining, a probe, collapse diagnostics
02_video_vjepa.py	tube masking, short- vs long-range
03_collapse_strategies.py	ema vs sigreg vs vicreg vs none
04_action_world_model.py	frozen encoder + latent dynamics, compounding error
05_planning.py	the full JEPA pipeline, measured against baselines
06_franka_newton.py	the same pipeline on a Franka arm
07_tdmpc2_franka.py	TD-MPC2: learn the model and the value
08_muzero_franka.py	MuZero: a model that agrees with its own search

Measured results, including the negative ones, are collected in Findings.

What they have in common

Every example follows the same shape, through examples/_common.py:

IMG_SIZE = setting("IMG_SIZE", 32)      # reads XWM_IMG_SIZE, defaults to a laptop value
out = setup("01_image_ijepa")           # makes examples/outputs/01_image_ijepa/

So the same file runs on a laptop and on an A100. See Running on GPU. Defaults are deliberately small: 32 px, a few hundred steps, minutes on CPU.

Each writes *.png figures, *.gif animations, *.json metrics at full precision and *.tex tables of the same numbers, into examples/outputs/<name>/.

The three Franka examples render their episode figures through one shared helper, examples/_common.py::figure_episode, so they pick a renderer at run time and degrade the same way when path tracing is unavailable. See Rendering.

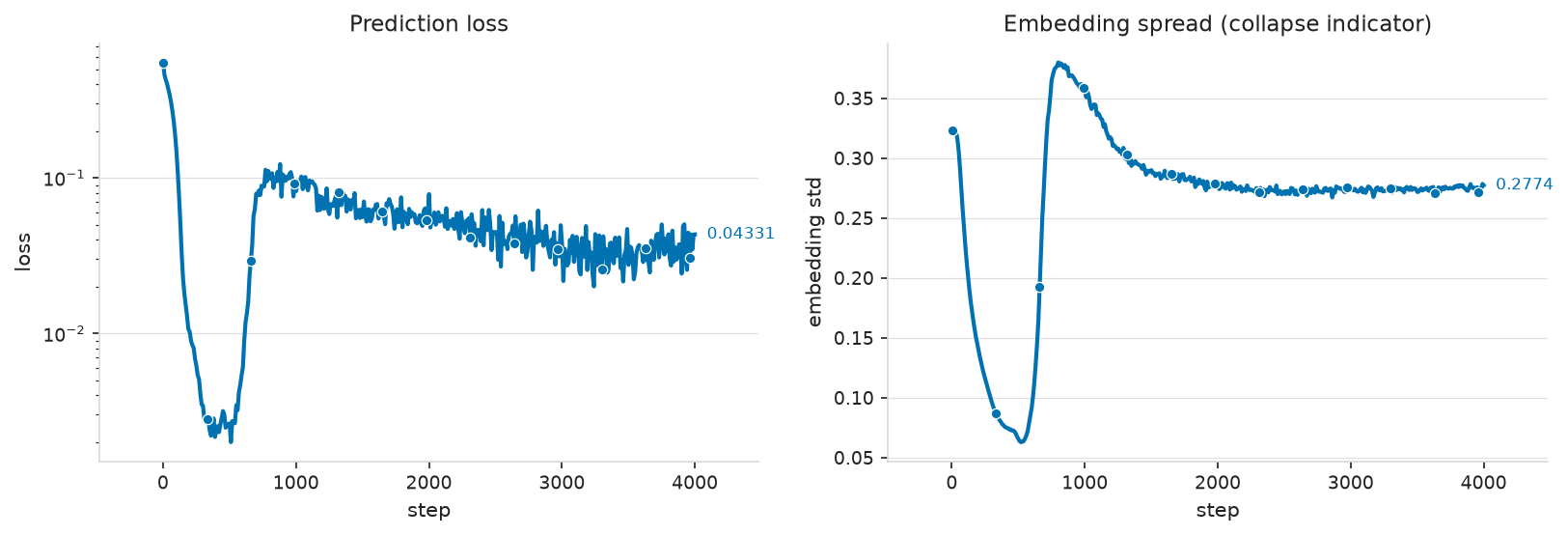

01 · I-JEPA on images

Pretrain, probe, and inspect. The point of the script is the disagreement between its outputs: the loss falls by an order of magnitude while the collapse diagnostics say the encoder collapsed, and the probe saturates before training even starts.

Writes: masks.png, mask_draws.gif, training_curve.png, spectrum.png, latent_pca.png. → Findings

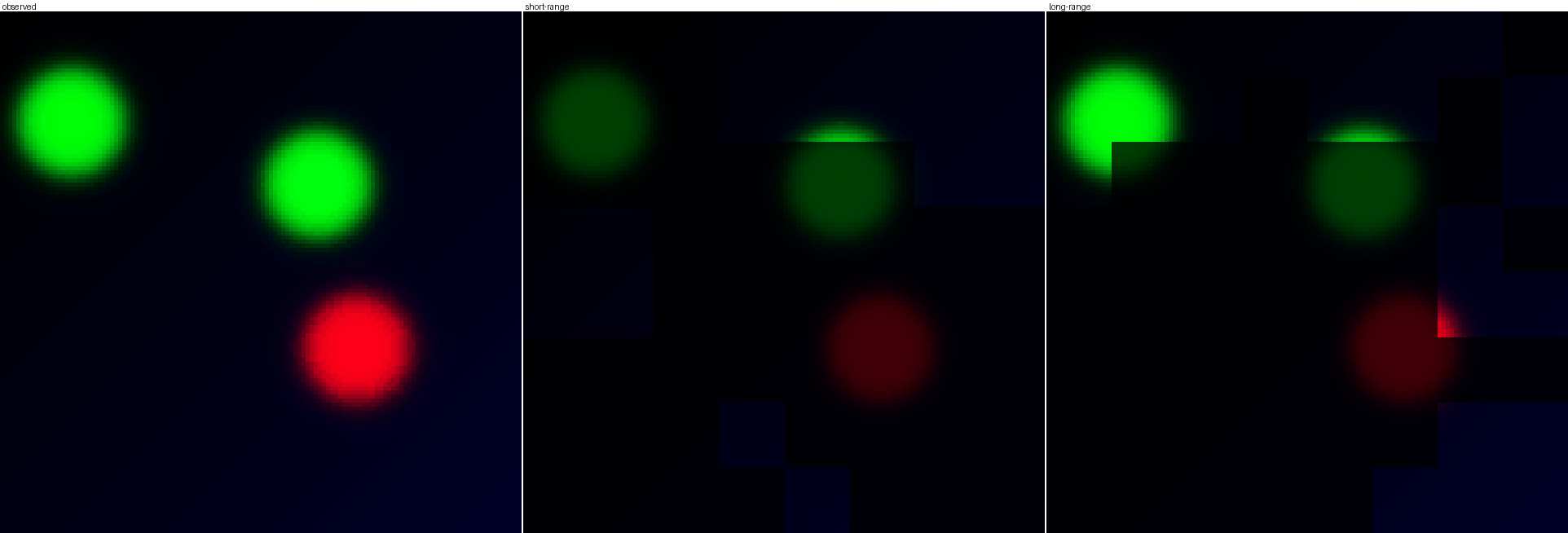

02 · V-JEPA on clips

Tube masking on 8-frame clips, comparing the short-range and long-range presets.

The tube is held across frames, so no visible frame contains the answer.

Writes: tube_masks.gif, tube_mask_frames.png, clip.gif, training_curves.png, spectra.png. → Findings

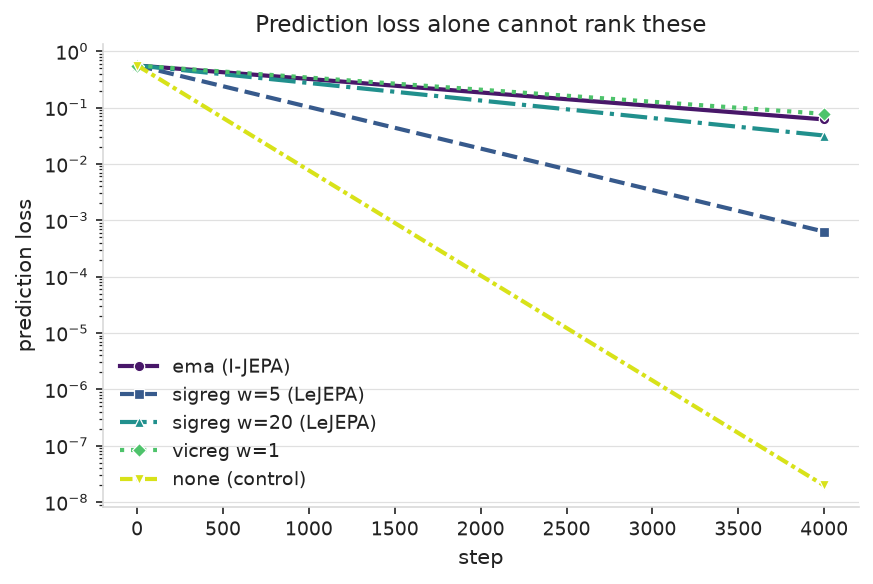

03 · Anti-collapse strategies

The same encoder trained five ways: ema, sigreg at two weights, vicreg, and none as a control. This is the example to read first if you are deciding what collapse= to use.

The run with the lowest loss is the one that learned nothing.

Writes: training_curves.png, diagnostics.png, spectra.png. → Findings

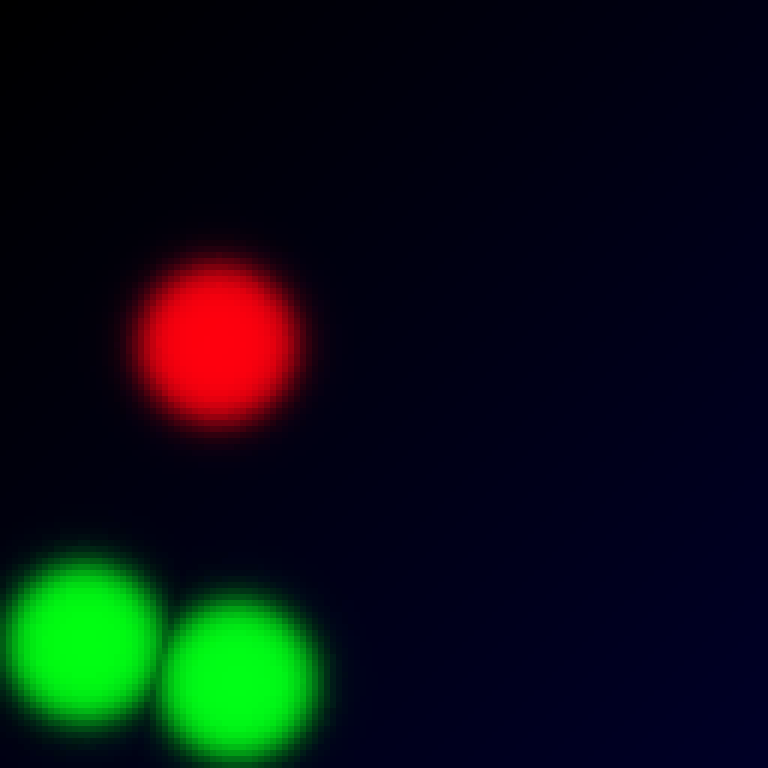

04 · An action-conditioned world model

Freeze the encoder from a JEPA, learn (z, a) → z' in its latent space, then measure a free rollout against a no-op baseline at every horizon.

Real frames against the model's imagined latents, decoded only for the figure.

Writes: episode.gif, episode_frames.png, horizon_error.png, training_curve.png. → Findings

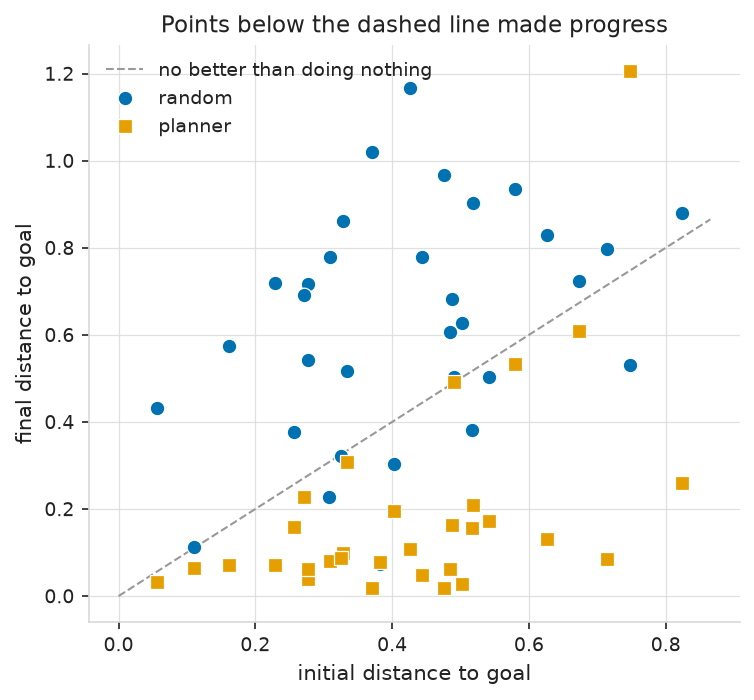

05 · Planning

The full JEPA pipeline end to end: pretrain, learn dynamics, plan with CEM toward a goal image, and evaluate against no-op, random and an oracle. Step 4 is what makes it an evaluation rather than a demo. Latent cost going down proves nothing, since the planner optimises latent cost by construction, so the script scores true distance instead.

Writes: planning_episode.gif, policy_comparison.png, per_episode.png. → Findings

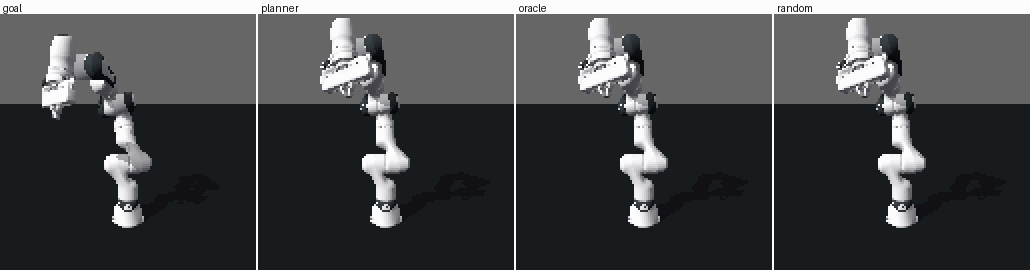

06 · The same pipeline on a Franka arm

Everything from 04 and 05, on a real robot model in Newton. Needs pip install "xwm[newton]".

It picks its renderer from which_backends() at run time: where OVRTX is available it writes path-traced GIFs, and where it is not it writes supersampled Warp figures plus a USD stage to render offline. XWM_RTX=0 skips the path tracing; XWM_RTX_SIZE changes its resolution. See Rendering.

Writes: episode.gif, planning_episode.gif, episode_frames.png, horizon_error.png, latent_pca.png, policy_comparison.png, training_curves.png, plus, at native render resolution, episode_hq.gif and episode_frames_hq.png, and episode.usd for path tracing the same episode offline. → Findings

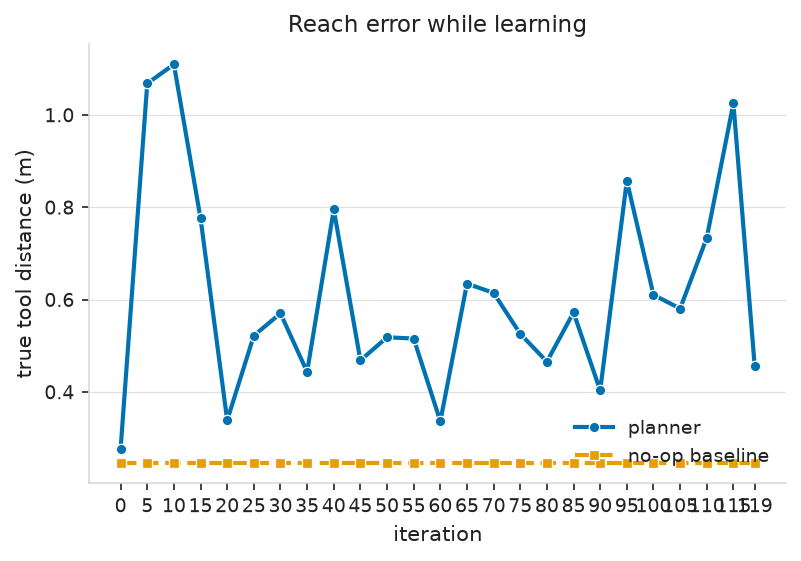

07 · TD-MPC2

Collect, train, plan, repeat, with reward instead of self-supervision. Compares the planner against the policy prior alone, which is the comparison that justifies planning at all.

Writes: episode.gif and episode_frames.png at figure quality, learning_curve.png, training_curve.png, policy_comparison.png, and episode.usd for path tracing the same episode offline. → Findings

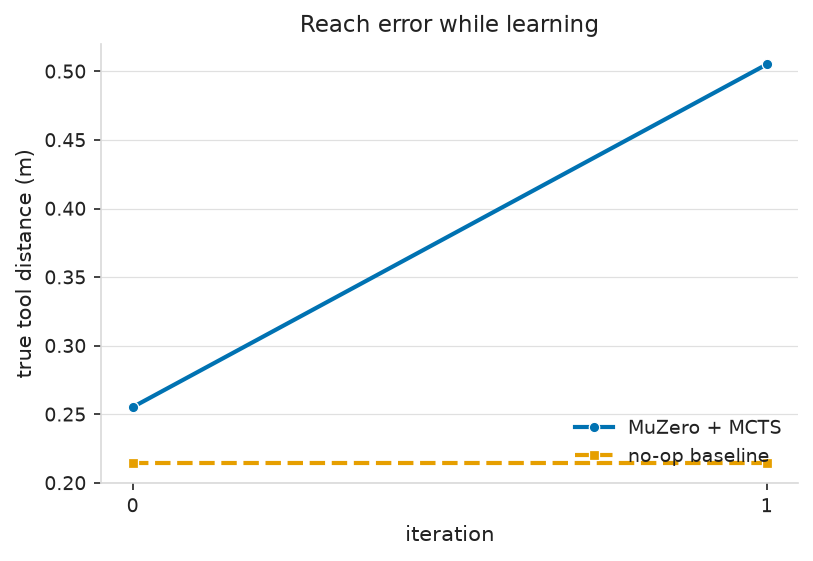

08 · MuZero

Act by running MCTS through the learned model, store what the search concluded rather than what the policy did, and train the model to agree with it.

Writes: episode.gif and episode_frames.png at figure quality, learning_curve.png, training_curve.png, policy_comparison.png, and episode.usd for path tracing the same episode offline. → Findings

Running at higher fidelity

XWM_IMG_SIZE=128 XWM_STEPS=4000 python examples/01_image_ijepa.py   # locally
modal run deploy/app_image.py --preset gpu                          # on a GPU
./deploy/run_all.sh                                                 # all eight

See Running on GPU for what each preset changes.
