Learning q in attention

Watch the entropic index q being learned inside an attention mechanism: as q rises toward sparsemax, the attention map sharpens onto the informative tokens.

This is the dynamic companion to sparse self-attention. The same single-head attention-pooling classifier is trained, but here we animate the optimization so the learning of q is visible frame by frame.

What it shows

A sequence has a few informative tokens (carrying a shared signal marker plus the class) among many noise distractors. The attention map is tsallis_entmax(scores, q), and q is a trained parameter:

def learned_q(params):
    # q is constrained to (1.1, 2.8) so it stays in the sparse-entmax regime
    return bounded_q(params["q_raw"], Q_MIN, Q_MAX)

def forward(params, x, q):
    scores = (x @ params["w_key"]) @ params["query"] / jnp.sqrt(D_MODEL)
    attn = qjax.tsallis_entmax(scores, q=q, axis=-1)   # q flows gradients
    ...

q is updated by the same Adam step as every other weight — the entropic index is just another differentiable parameter.

Result

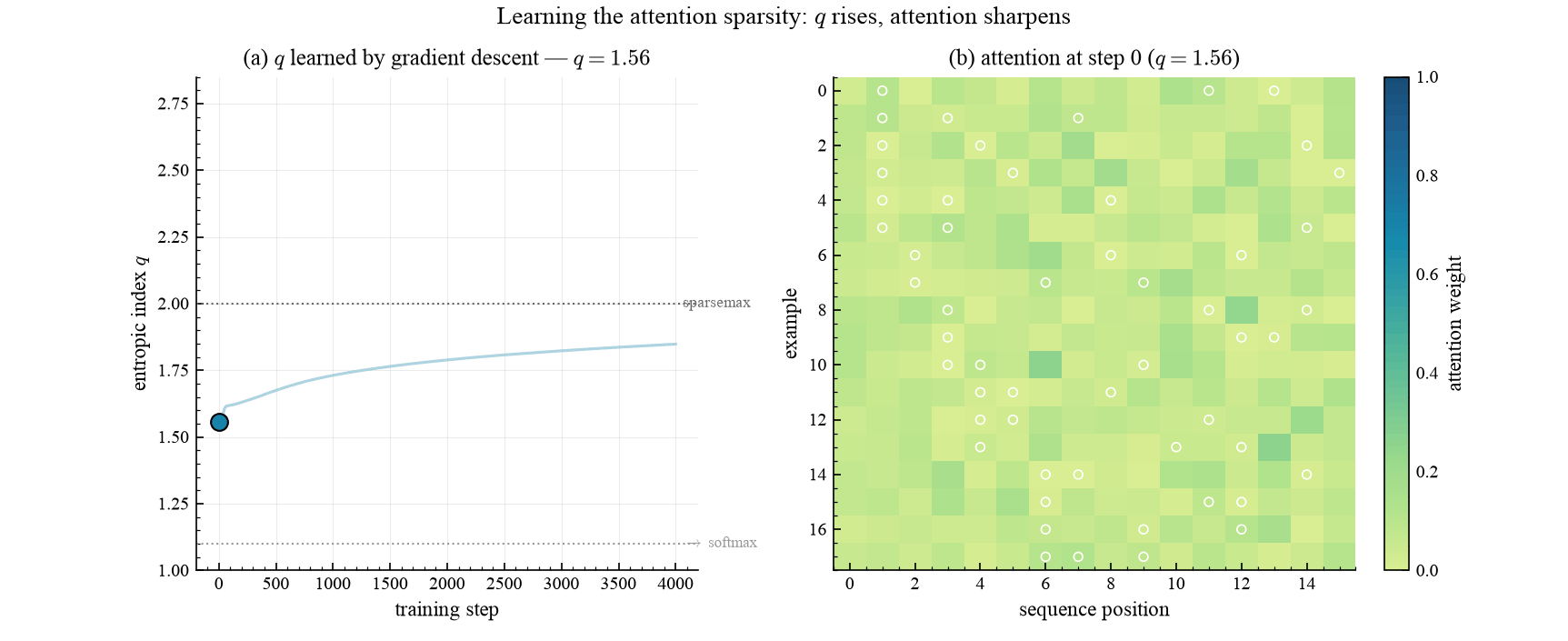

Left: the learned q over training, climbing from its initialization (q ≈ 1.56) toward sparsemax (q = 2). Right: the attention map (examples × positions) recomputed at each step — white outlines mark the ground-truth informative tokens. Early on, attention is diffuse; as q is learned the map sharpens and concentrates exactly on the outlined tokens, zeroing out the noise.

Takeaways

• q is learned end-to-end by gradient descent, not tuned — it converges near sparsemax (q ≈ 1.9) because that best solves the signal-in-distractors task.
• Attention sparsity and learning happen together: the rising q and the sharpening attention map are two views of the same optimization.
• For the fixed-q comparison (softmax vs entmax vs sparsemax) across sequence lengths, see sparse self-attention.
